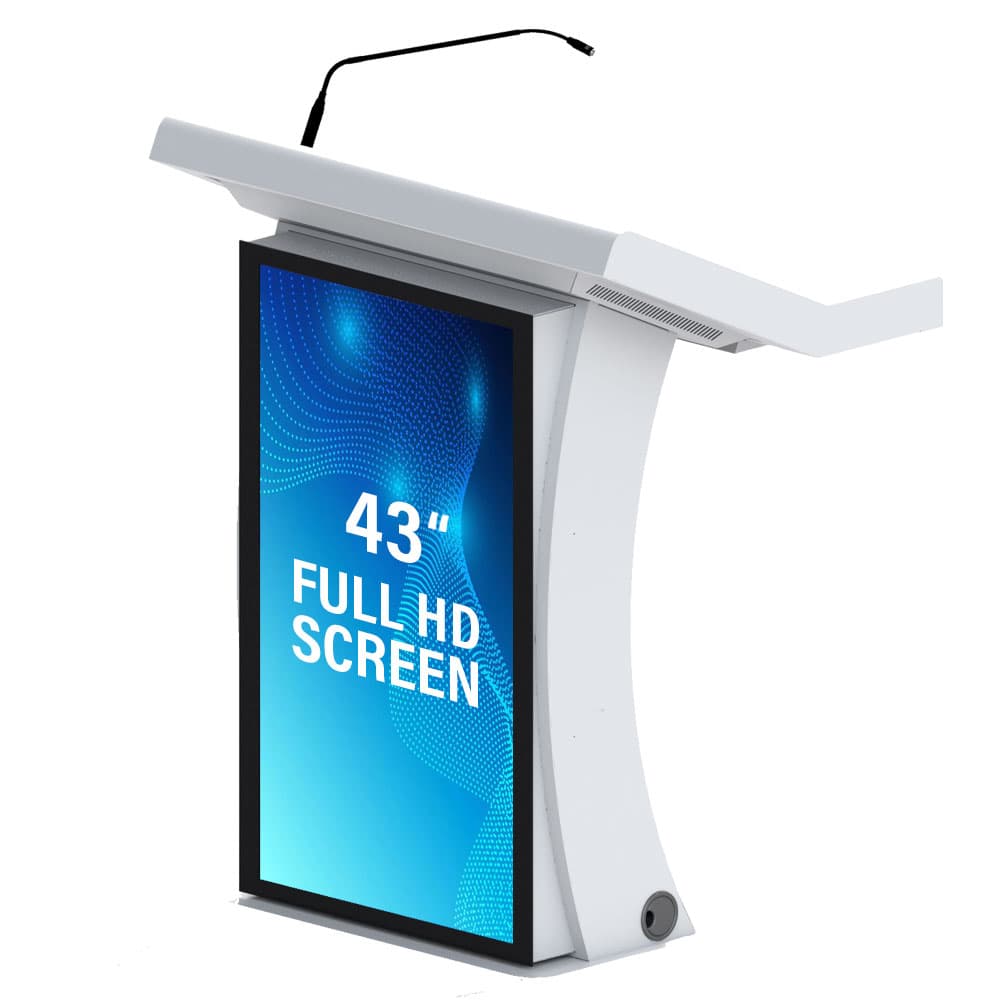

DL24B Digital Podium

DL24B is designed to meet the basic needs in a conference room. Connecting the existing projector and sound system to DL24B is easy. In case there is not any projector, sound system, or network connection. DL24B can satisfy your needs as astand alone product.

  • MultiTouch Speaker Screen
  • Front screen – with Embedded Signage Media Player
  • Player PC : Intel i3 4GB, 120 GB SSD Win 10 Embedded iot OS
  • Creapen Annotation
  • Microphone
  • Digital Touch Timer

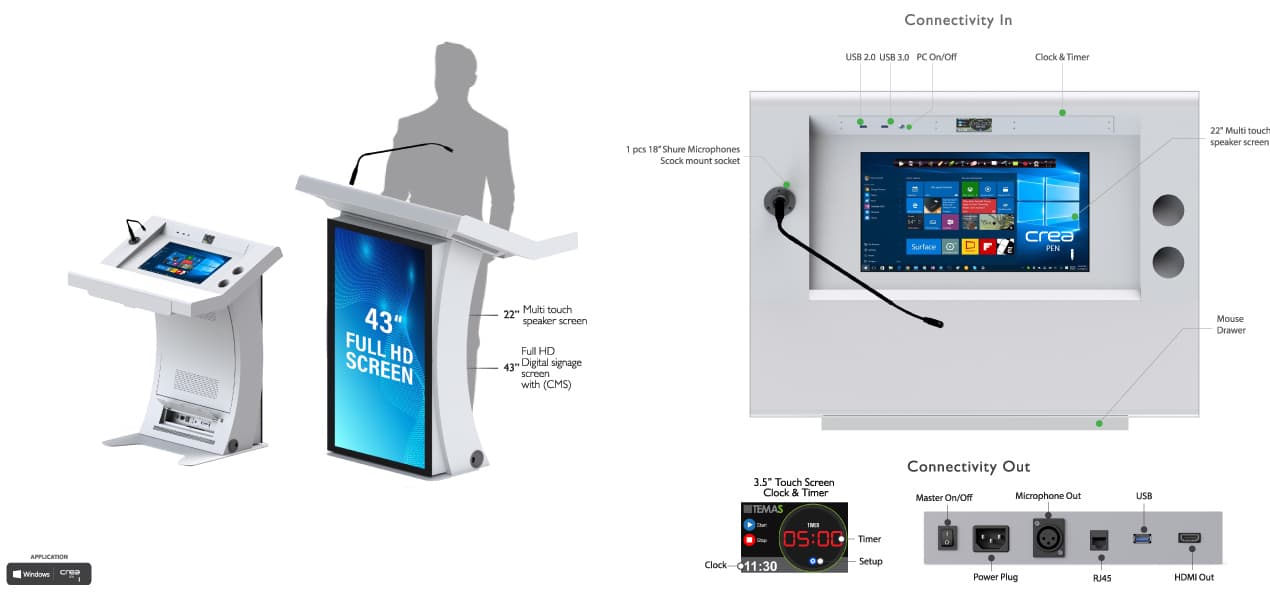

Connectivity IN

1- 1 pcs 18” Shure Microphones
Scock mount socket

2- USB 2.0

3- USB 3.0

4- PC ON / OFF

5- Clock & Timer

6- 22″ Multi touch speaker screen

7- Mouse Drawer

Connectivity OUT

Connecting the existing projector and sound system to DL24B is easy

3.5" Touch Screen Clock & Timer

Comparison

DL24B
Multi touch speaker screen22"
Front screen - with Embedded Signage Media Player43"
Front Screen Content Managemenet Software
Player PC : Intel i3 4GB, 120 GB SSD Win 10 Embedded iot OS
Microphone
Digital Touch Timer
Creapen Annotation

Screen Annotation & Screen Recording Solution for Presentations

Model: DL24B
Main Specifications
Speaker Screen 22″ Multi touch capacitive
Front Screen 43″ with built-in signage media player
Built-in PC for Speaker Screen intel i3 4GB Ram, 120 GB SSD, Win 10 Embedded ioT
Microphone 1 pcs 18″ Gooseneck Condenser Microphone



Detailed Specifications
Front Panel 43″
Screen Specifications
Resolution 1920×1080 FHD
Brightness 500 cd/m2
Aspect ratio 16:9
Panel Type IPS
Front Panel Player Built-in Digital Signage Media Player
Front Panel Content Management Software Available



Lecturer Panel 22″
Screen Specifications
Resolution 1920×1080 FHD
Brightness 250 cd/m2
Panel Type IPS
Aspect ratio 16:9
Touch Technology Capacitive
Touch Points 10 points
Lecturer Panel PC Specifications
CPU 4th Generation Intel Core i3
RAM 4 GB DDR4
HDD 120 GB SSD
Operating System Windows Embedded 10 IoT



Microphone
Length 18″
No of microphone 1 pcs
Output Connector 3-way XLR (Male)
Microphone Type Cardioid
Frequency Response 50 -18 kHz
Sensitivity (at 1,000Hz) -60dB ± 3dB
Impedance 220Ω
Power ON indicator LED
Power requirement Phantom Power (48V)



Timer & Chronometer
Screen size 3,5″
Clock Available
Timer Available
Stopwatch Available
Touch Single touch



Inputs (on Speaker Panel)
USB USB 2.0 and USB 3.0 (for internal PC)



Outputs (Bottom of Podium)
HDMI Available
Ethernet Available
XLR for microphone Available
USB USB 2.0 (for internal PC)



Power
Power Input 230V 50Hz
Power Consumption 450W (max)



Peripherals &other features
Color White
Packing Wooden box export packing



Mechanical Specs
Outline Dimension (mm) Set: 742 x 950 x 1159
Weight (kg)



Optional features Front screen PC
Flight case
Features

Connectivity IN

1- 1 pcs 18” Shure Microphones
Scock mount socket

2- USB 2.0

3- USB 3.0

4- PC ON / OFF

5- Clock & Timer

6- 22″ Multi touch speaker screen

7- Mouse Drawer

Connectivity OUT

Connecting the existing projector and sound system to DL24B is easy

3.5" Touch Screen Clock & Timer

Comparison

DL24B
Multi touch speaker screen22"
Front screen - with Embedded Signage Media Player43"
Front Screen Content Managemenet Software
Player PC : Intel i3 4GB, 120 GB SSD Win 10 Embedded iot OS
Microphone
Digital Touch Timer
Creapen Annotation

Screen Annotation & Screen Recording Solution for Presentations

Product Video
Specs
Model: DL24B
Main Specifications
Speaker Screen 22″ Multi touch capacitive
Front Screen 43″ with built-in signage media player
Built-in PC for Speaker Screen intel i3 4GB Ram, 120 GB SSD, Win 10 Embedded ioT
Microphone 1 pcs 18″ Gooseneck Condenser Microphone



Detailed Specifications
Front Panel 43″
Screen Specifications
Resolution 1920×1080 FHD
Brightness 500 cd/m2
Aspect ratio 16:9
Panel Type IPS
Front Panel Player Built-in Digital Signage Media Player
Front Panel Content Management Software Available



Lecturer Panel 22″
Screen Specifications
Resolution 1920×1080 FHD
Brightness 250 cd/m2
Panel Type IPS
Aspect ratio 16:9
Touch Technology Capacitive
Touch Points 10 points
Lecturer Panel PC Specifications
CPU 4th Generation Intel Core i3
RAM 4 GB DDR4
HDD 120 GB SSD
Operating System Windows Embedded 10 IoT



Microphone
Length 18″
No of microphone 1 pcs
Output Connector 3-way XLR (Male)
Microphone Type Cardioid
Frequency Response 50 -18 kHz
Sensitivity (at 1,000Hz) -60dB ± 3dB
Impedance 220Ω
Power ON indicator LED
Power requirement Phantom Power (48V)



Timer & Chronometer
Screen size 3,5″
Clock Available
Timer Available
Stopwatch Available
Touch Single touch



Inputs (on Speaker Panel)
USB USB 2.0 and USB 3.0 (for internal PC)



Outputs (Bottom of Podium)
HDMI Available
Ethernet Available
XLR for microphone Available
USB USB 2.0 (for internal PC)



Power
Power Input 230V 50Hz
Power Consumption 450W (max)



Peripherals &other features
Color White
Packing Wooden box export packing



Mechanical Specs
Outline Dimension (mm) Set: 742 x 950 x 1159
Weight (kg)



Optional features Front screen PC
Flight case
